Setting R/3 Destination Failed in Windows Vista or Windows 7

When I need to configure R/3 Destination in NWDS Studio to be able to call backend connection using RFC it doesn’t give any response when I press the “Add” button. Some site says that it because I use Windows Vista or Windows 7. Currently, I use Windows 7 as my operating system.

For your information, I used  SAP NetWeaver Developr Studio SAP Netweaver 7.3 SP00 PAT0000.

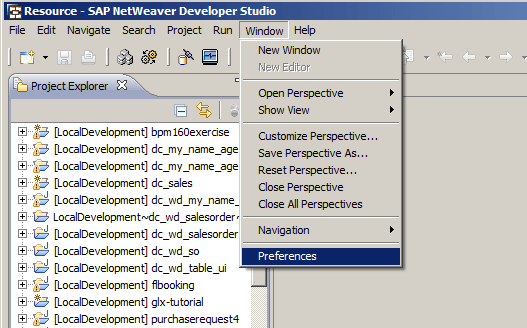

Path to setting R/3 Destination
Path to setting R/3 Destination

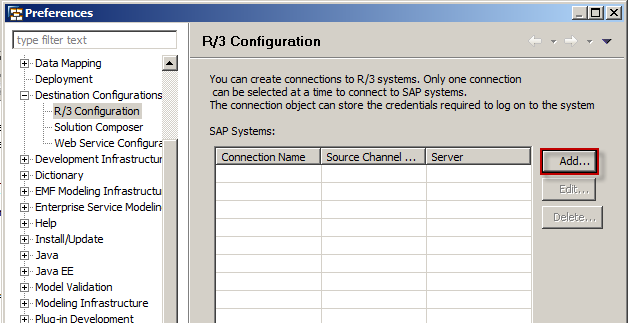

No response when press add button in screen R/3 Configuration
I got no response when press add button in screen R/3 Configuration

Then, what I need to configure is by added some line script in file SapNetweaverDeveloperStudio.ini .

Location of the file SapNetweaverDeveloperStudio.ini
Location of the file SapNetweaverDeveloperStudio.ini

Here some line script I need to add:

-Xmx512m

-Xms128m

-XX:PermSize=32m

-XX:MaxPermSize=128m

-Dos.name=’Windows XP’

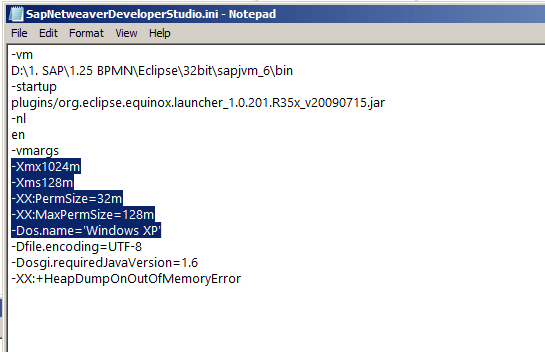

Additional script to be added
Additional script to be added
R/3 Destination Configuration
R/3 Destination Configuration after addition in script line file NWDS.ini
Succesful R/3 Destination Configuration
Succesful R/3 Destination Configuration
